设备特点 Equipment Features

1、全自动修磨机为三轴伺服联动，以极坐标的形式实现空间打磨曲线，产品精度更高；

With X/Y/Z three-axis servo motor linkage. Spatial curve grinding is achieved in the form of polar coordinates. High grinding accuracy.

2、设备全自动控制，避免人为干预，安全、高效；

Fully automatic control. Avoid manual intervention. Safe and efficient.

3、设备配备激光扫描仪，可快速扫描轮胎轮廓并精准建模；

Equipped with a laser scanner. Can accurately scan the tread contour and model the profile.

4、设备具有轮辋自动定中功能，可自动调整轮辋间距以适应不同宽度轮胎；

Equipped with automatic determination which can automatically adjust the rim spacing to accommodate different width tires.

5、设备标配三级轮辋，相比传统轮辋能够匹配更多规格轮胎；

Equipped with three-stage rims as standard. Match more specifications of tires compared with the traditional tire rim.

6、设备标配胎侧清扫模块，可对胎侧进行打磨、清扫；

With tire sidewall cleaning device as standard. Can buffing and cleaning on the sidewall.

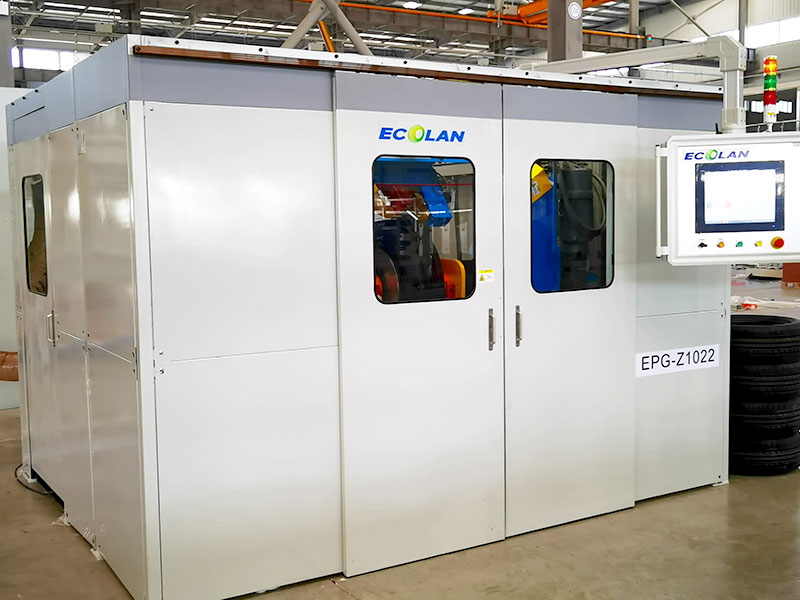

7、设备标配隔音房，将工作噪音降至最低。

With soundproof room as standard. Minimize the working noise.

技术参数technical parameter

轮辋规格Rim Size              10’’-24’’inch

轮胎宽度 Tread Width          130-400mm

子口宽度 Tire Bead Width       75-380mm

轮胎直径Tire Diameter          400-960mm

进刀效率Tool Feed Efficiency      0.01mm/times≤ψ≤0.45mm/times

功率Power                    30.1 KW

外形尺寸Dimensions            3270×2750×2750 mm

重量Weight                   3500 Kg
